Shell 5502A HDPE Resin – High Melt Strength Blow Molding Grade | Food Contact Safe, ESCR, General Purpose
Shell 5502A is a common HDPE material. It works well for hollow blow molding. It has strong melt strength and great resistance to stress cracks. It is firm and tough at the same time. It runs steadily during production. It makes finished parts with even wall thickness. Many factories use this plastic for packaging containers and hollow industrial products.
1. Basic Product Specifications

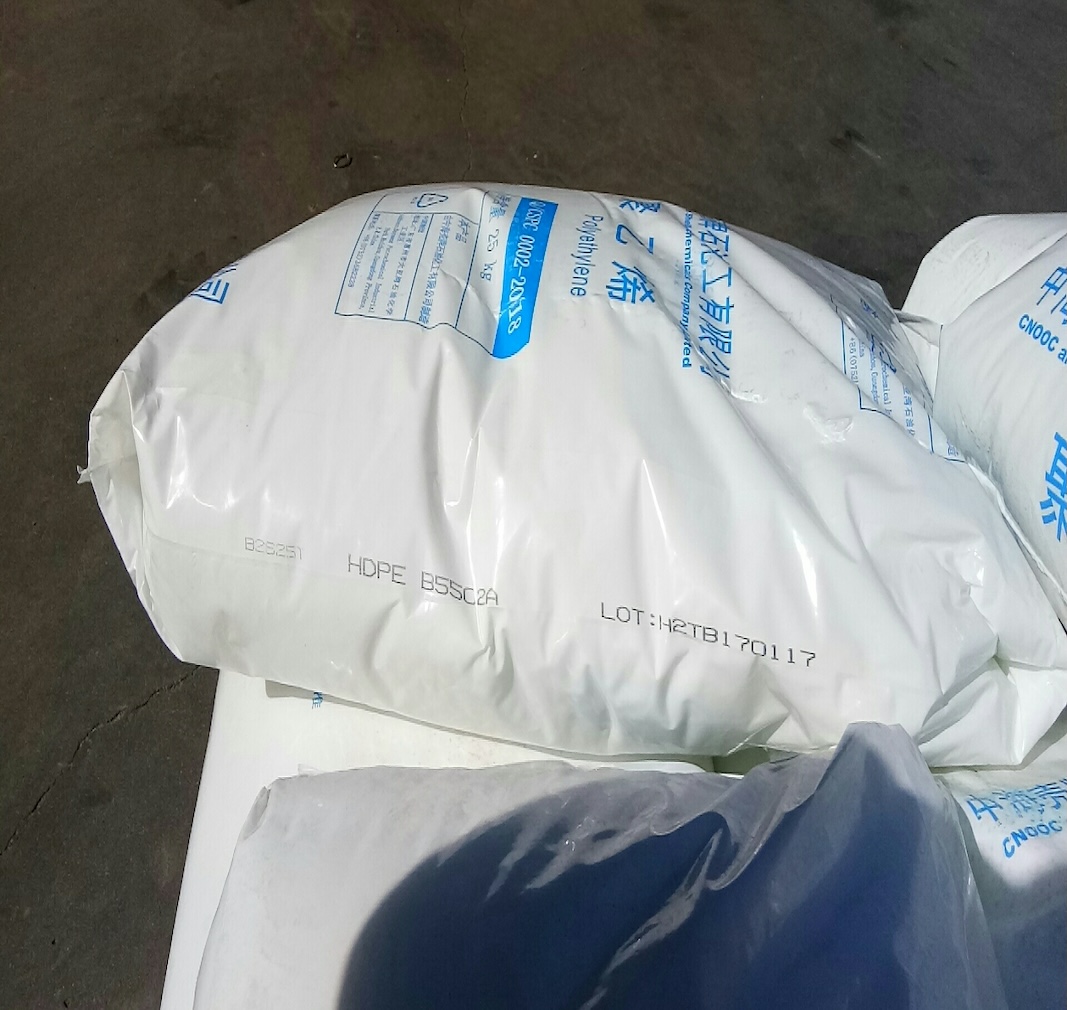

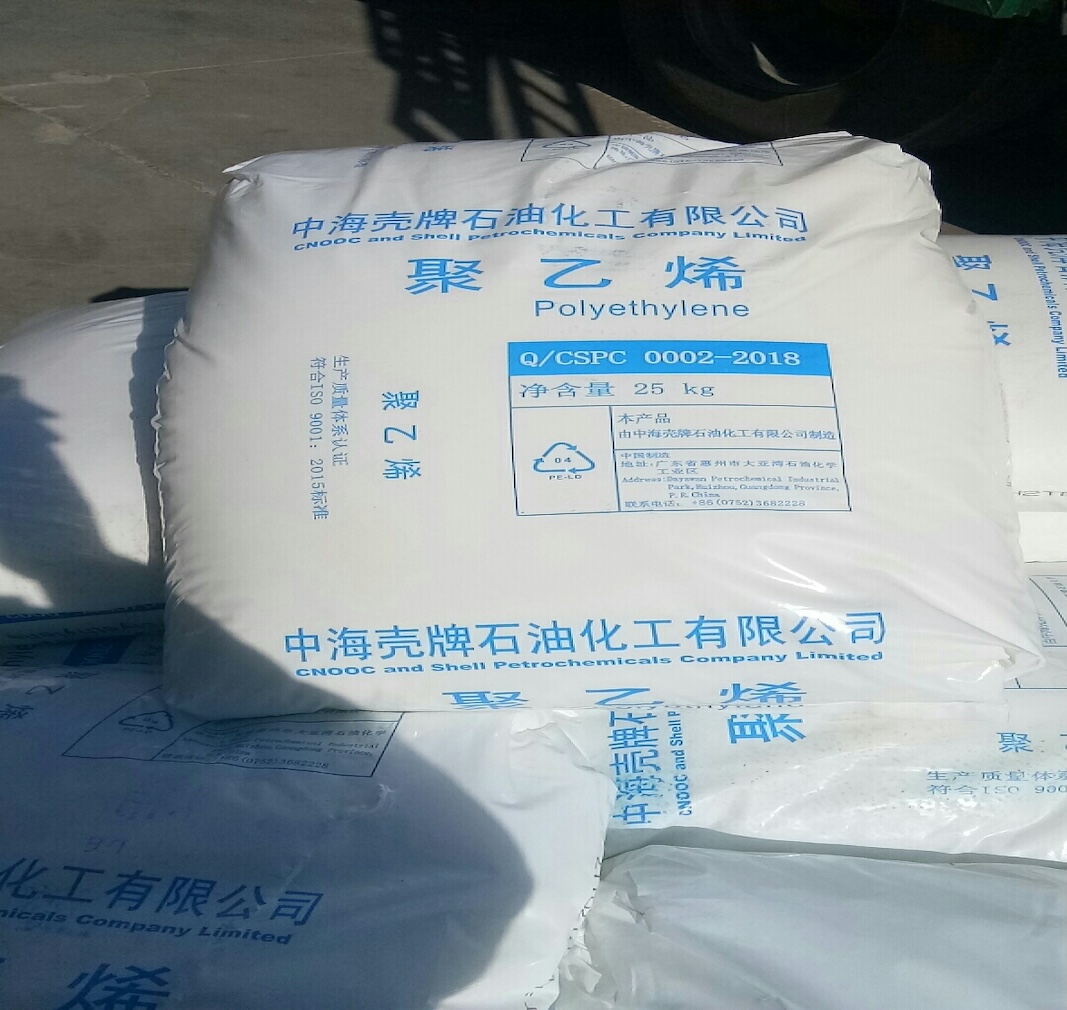

This is new plastic material. It is milky white grains. It has almost no dirt or black spots. Every batch has the same good quality. It comes in standard 25 kg original bags. We give quality test reports for each batch. You can check all quality records easily.
Density: 0.955 g/cm³ (ISO 1183)
Melt Flow Rate (MFR): 0.35 g/10min (190 °C/2.16kg, ISO 1133; normal range: 0.30–0.40 g/10min)
Tensile Yield Strength: Average 26 MPa (minimum 24 MPa, ISO 527)
Charpy Notched Impact Strength: 12 kJ/m² at 23°C. It stays tough even at low temperatures. We can share test data at -30°C if you need it.
Environmental Stress Cracking Resistance (ESCR): F50 ≥ 1000 hours (tested in 10% Igepal solution). It works better than most common blow molding HDPE materials on the market.
Melt Strength: Its material sag is over 30% less than regular HDPE with the same melt flow rate.
2. Core Product Advantages
Strong melt strength for stable blow molding
The melted material keeps its shape well and hardly sags during production. The product wall is even. It stops thin walls, collapsed bottles and material breaks. It fits most popular blow molding machines like Kautex, Bekum and Magic. You can run large-scale continuous production smoothly.
Great anti-crack performance for reusable packaging
This material does not crack easily when touching chemicals or bearing inner stress. It stays intact when holding detergent, lubricant and chemical liquid for a long time. It makes containers last longer. It is a good choice for reusable industrial plastic barrels.
Firm and tough, hard to break when dropping
This material is firm and stays tough in cold weather. Finished containers keep shape and do not deform. They can stand hits and drops. This cuts product damage during transport and outdoor use.
High purity and mild smell for safe packaging
The plastic is pure and has little smell. It also releases few volatile substances. It meets GB 4806.6-2016, FDA 21 CFR 177.1520 and EU 10/2011 food contact rules. It creates little gas during processing. The finished products look neat. You can use it for food and daily chemical packaging directly.
Easy to mix with other plastics for different uses
You can mix it with other HDPE materials to change hardness, toughness and flow ability. Please run a small trial of 5–10 kg before full production. This checks mixing effect and avoids layered parts or uneven quality.
3. Application Fields
0.2–2 L Small Containers
Daily chemical bottles, small food bottles, small sealed boxes
2–20 L Medium & Small Containers
Food Packaging: Edible oil bottles, juice bottles, 5–20 L water storage barrelsDaily Chemical Packaging: Laundry detergent barrels, dish soap bottles, disinfectant bottles, large cosmetic bottlesIndustrial Chemical Packaging: Lubricant bottles, reagent bottles, industrial additive containers. Test chemical resistance first if you make pesticide bottles.
20–50 L Medium Storage Containers
Industrial storage barrels, regular hollow plastic parts, industrial cans
We can adjust this material to resist UV light, become tougher or match special colors as you need. If you make containers larger than 50 L, please contact us for better suitable materials.
4. Blow Molding Processing Guidelines
Recommended Process Parameters
Barrel Temperature: 180–220 °C. Raise the temperature step by step from the feed inlet to the nozzle.
Mold Temperature: 20–40 °C. Change the value according to product wall thickness.
Blow Pressure: 0.4–0.8 MPa. 0.5–0.7 MPa is good for common products.
Drying: No need to dry under normal storage. Dry the grains at 60–70 °C for 1 hour if they get wet.
Blending: Mix it with 10–20% LLDPE. The mixture resists drops better and becomes tougher.
5. Quality Assurance & Procurement Support
Authentic products: We are official authorized sellers of Shell. You can check product authenticity via QR code and batch number. We provide quality test reports for every batch to track full quality records.
Standard Packaging: 25 kg per bag. We offer pallet packing, small batch delivery and full container export.
Compliance Certificates: We have ISO 9001 quality system certification. We can provide food contact documents, RoHS, REACH and other certificates to meet domestic and overseas shipping rules.
Stable Supply: We keep products in stock all year round. We support sample tests, small orders and full container orders.
6. FAQ
Q1: Can we use Shell 5502A directly for food contact packaging?A: Yes. It follows GB 4806.6-2016 and FDA food contact standards. Few substances leak out and it releases little volatile gas. It fits food-grade hollow containers such as oil bottles and water barrels.
Q2: Can we mix this material with other polyethylene for production?A: Yes. Add 10–20% LLDPE to make products resist drops better. Mix with common HDPE to change melt flow ability. Run trial production first before mass work to prevent layered parts.
Q3: What size of barrels fit 5502A? Can it make barrels over 100L?A: Shell 5502A works best for containers from 0.2L to 50L. It is not suitable for barrels above 100L due to its melt strength. Please choose other stronger materials for large containers.
7. Product Summary
Shell 5502A is a practical HDPE material for hollow blow molding. It has strong melt strength, good anti-crack ability and stable processing performance. People widely use it for food packages, daily chemical bottles and industrial barrels. Our products have steady quality and enough stock. We accept regular orders and all kinds of export orders.
