Shell B53 Blow Molding HDPE | Food Grade, ESCR≥1000h for 20L Drums & Bottles | In Stock
Shell B53 is a type of HDPE plastic for hollow blow molding. It has strong melt strength and great resistance to stress cracks. Its melt flow rate is 0.35 g/10min. It meets food contact safety rules and we always have it in stock. It is a good raw material for 20L plastic drums. It also works well for food bottles, daily chemical bottles and chemical packaging containers.
Basic Product Specifications

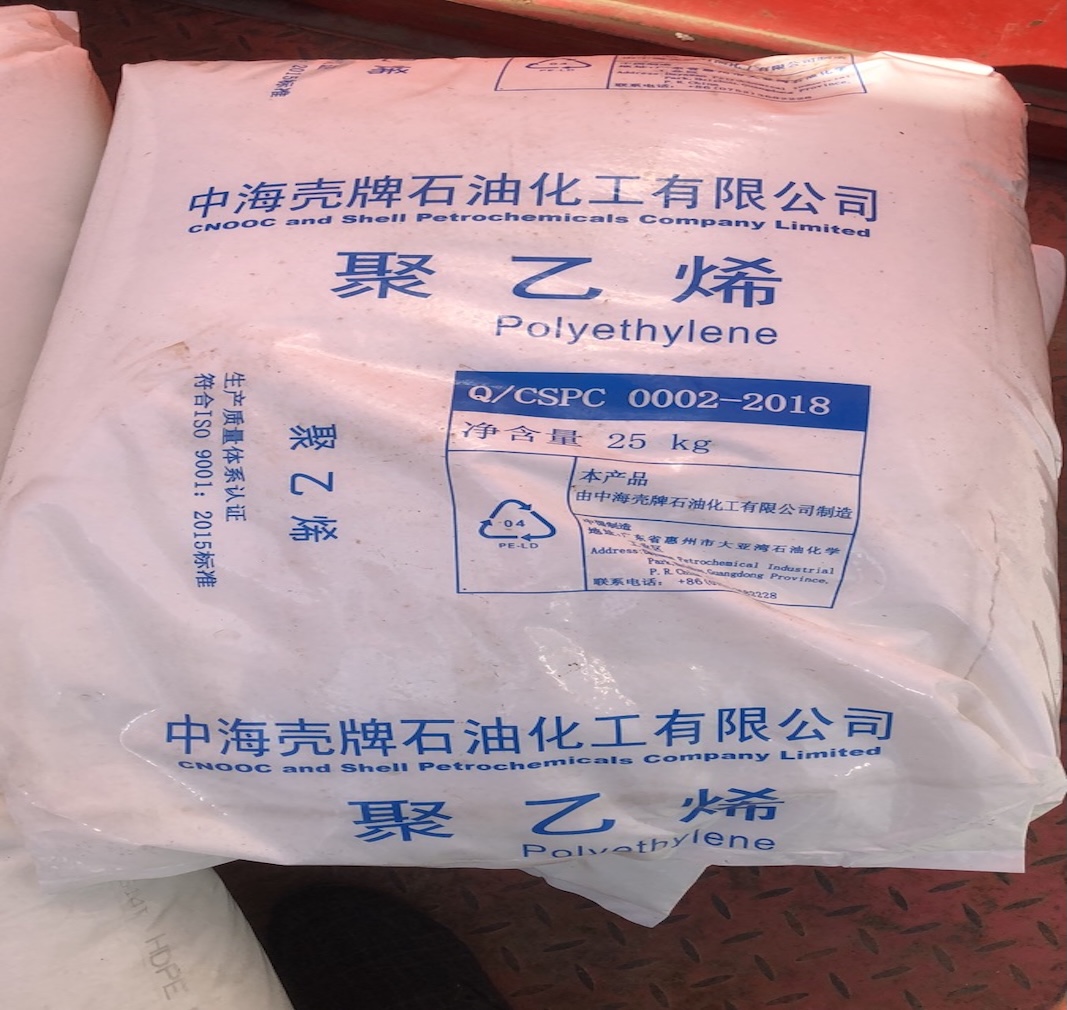

This is new plastic material. It is milky white grains with few impurities and little smell. All batches have steady quality. It is packed in standard 25kg bags. We provide quality test reports for every batch, so you can track product quality fully.
Density: 0.955 g/cm³ (ISO 1183)
Melt Mass Flow Rate (MFR): 0.35 g/10min (190℃/2.16kg, ISO 1133, range: 0.30–0.40 g/10min)
Tensile Yield Strength: 26 MPa (minimum ≥24 MPa, ISO 527)
Charpy Notched Impact Strength: 12 kJ/m² at 23℃. It stays tough even in low temperature.
Environmental Stress Cracking Resistance (ESCR): Tested with 10% Igepal CO-630 solution. Its ESCR F50 value is over 1000 hours, better than most common products in the industry.
Melt Strength: Compared with regular HDPE of the same melt flow rate, its melted material sags more than 30% less. This makes molding work more stable.
Core Product Advantages
Ultra High ESCR Performance Extends Container Service Life
This HDPE grade features exceptional anti-stress-cracking capacity with F50 ESCR index over 1000 hours. It drastically lowers cracking and liquid leakage risks under long-term contact with daily detergents, lubricants and mild industrial solvents. Compatibility testing is mandatory before packaging high-corrosion pesticide or strong acid/alkaline liquids. It is highly suitable for reusable logistics drums and cyclic industrial liquid packaging containers.
Outstanding Melt Strength for Stable Continuous Blow Molding
Extruded molten parison maintains stable shape with drastically reduced sagging tendency. It produces finished parts with uniform wall thickness and greatly suppresses common defects including uneven wall gauge, parison collapse and melt breakage. Compatible with all mainstream continuous blow molding production lines, it enables steady large-volume mass manufacturing.
Food safe and low odor
This plastic is food grade. It follows GB 4806.6-2016, FDA 21 CFR 177.1520 and EU 10/2011 rules. It is pure and releases few volatile substances. You can use it directly to make oil bottles, juice bottles and food storage drums.
Firm and tough, good drop resistance
The material is firm and keeps good toughness in cold weather. Finished products will not change shape easily. They can stand hits and drops during transport, and reduce product damage.
Easy to process and support customized needs
You can mix it with other HDPE materials to change hardness, toughness and flow performance. We can also make customized products, such as special colors, tougher material and UV resistant material. These choices meet the needs of outdoor use and special appearance demands.
Typical Application Fields
Small Containers (0.2–2L)
Daily chemical bottles, small food bottles, sealed plastic boxes
Medium & Small Containers (2–20L)
Food packaging: Edible oil bottles, juice bottles, raw materials for 20L drums, water storage barrels
Daily chemical packaging: Laundry barrels, detergent bottles, disinfection containers
Chemical packaging: Lubricant bottles, reagent bottles, industrial additive barrels. Please do chemical resistance tests first before making pesticide bottles.
Medium Storage Containers (20–50L)
Industrial storage barrels, blow molded plastic parts, industrial cans
Recommended Blow Molding Processing Parameters
Barrel Temperature: 180–220℃. Raise temperature little by little from feed inlet to nozzle.
Mold Temperature: 20–40℃. Adjust the temperature based on product wall thickness.
Blow Pressure: 0.4–0.8 MPa. 0.5–0.7 MPa is fit for common products.
Drying: You do not need to dry the material under normal storage. If the grains get wet, dry them at 60–70℃ for 1 hour.
Blending: Mix this material with 10%–20% LLDPE. It will resist drops better and become tougher.
Quality Assurance & Supply Service
Genuine products: You can check product authenticity. We provide COA, RoHS, FDA and MSDS files for every batch.

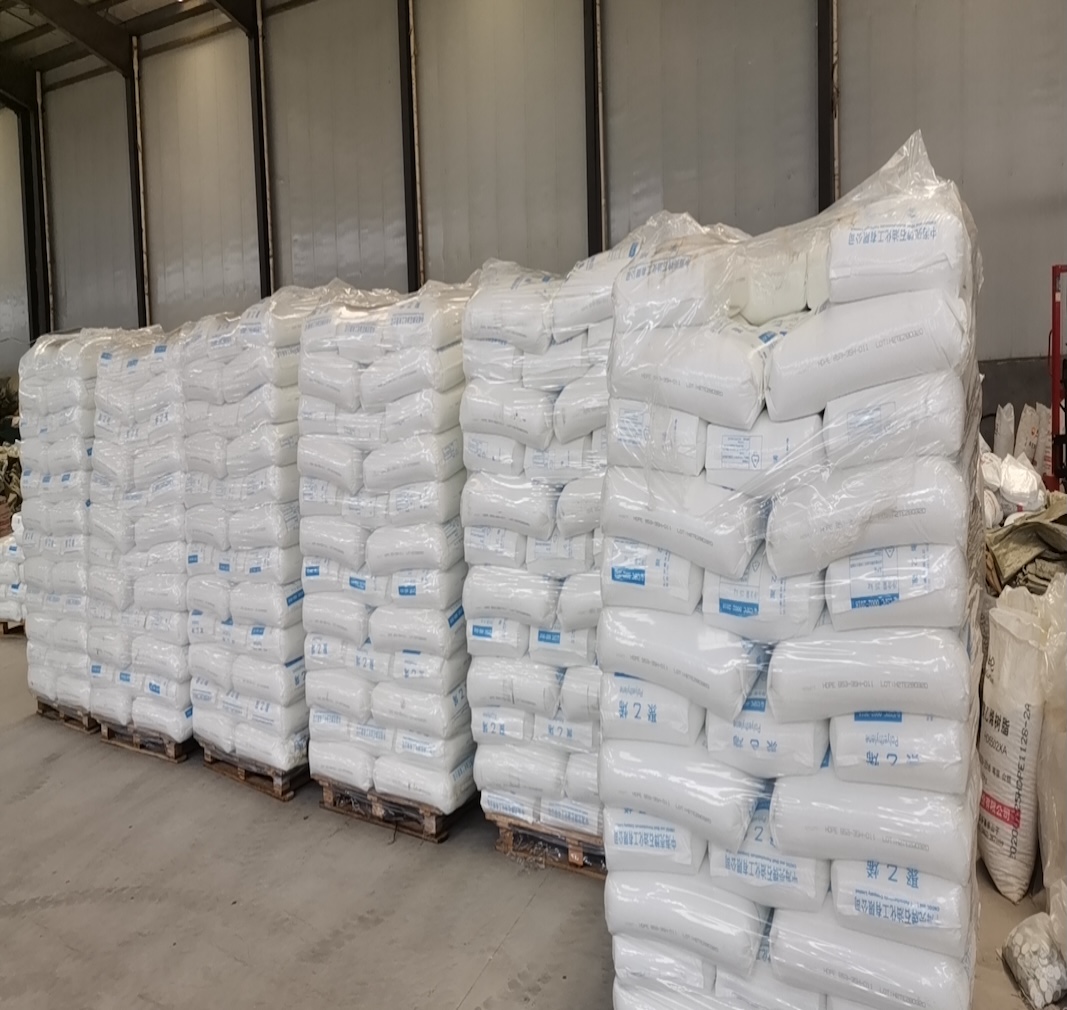

In stock: Each bag is 25kg. We support small batch delivery and full container delivery. Pallet packing is also available.
Certification: We have ISO 9001 certification. We can offer complete documents for food contact, RoHS and REACH.
Technical support: We provide free samples, product data sheets and professional processing guidance.
FAQ
Q1: Will containers molded from Shell B53 crack when filled with industrial chemical liquids or daily detergents?A: This grade delivers industry-leading ESCR performance with F50 index exceeding 1000 hours, which drastically reduces cracking and leakage risks during long-term storage of mild daily chemicals and lubricants. Solvent compatibility testing must be completed in advance if high-corrosion chemical liquids are to be stored inside the containers.
Q2: Do we need to dry the material before use?A: No. No drying is required for normally stored grains. If the grains take in moisture, dry them at 60–70℃ for 1 hour.
Q3: Does Shell B53 meet RoHS and REACH rules?A: Yes. We can provide RoHS and REACH compliance papers with goods. It meets environmental standards for EU and global markets.
Q4: Can we use it to make food packaging?A: Yes. It is food grade. It follows China national standards, FDA and EU rules. It is safe to use and has little smell.
7. Product Summary
Shell B53 is a widely used HDPE material for hollow blow molding. It has strong anti-crack ability, high melt strength and food safe property. Its processing steps are mature. People mainly use it to make 20L drums, as well as packaging for food, daily chemicals and industrial chemicals. We have enough stock and steady product quality, and accept regular orders and export orders.
For complete technical datasheets, food contact compliance certificates (GB 4806, FDA, EU 10/2011), COA reports, free samples or bulk price quotations, please feel free to contact us. We offer professional blow molding processing guidance and are committed to being your reliable HDPE supply partner.
